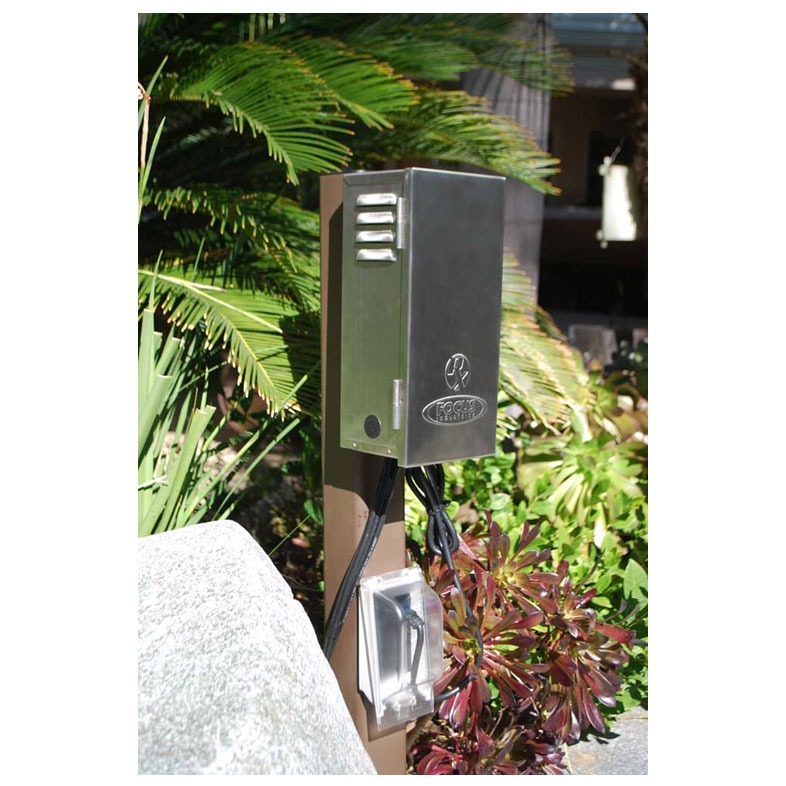

Focus Stainless Steel Transformer for Focus Lights – RXT1260MV

$216.00

SPECIAL ORDER PLEASE ALLOW 2-3 WEEKS

MATERIAL/FEATURES

  • UL 1838 listed, the standard for low voltage landscape lighting systems
  • 60 watt output model available
  • Multi Voltage output standard(12.5, 13.5 & 14.5 Volts)
  • Super Terminal Lugs with capacity of 3 x #8, 5 x #10, 7 x #12 or 9 x #14 gauge wire
  • 304 Stainless Steel enclosure with No. 4 brushed finish
  • Removable hinged door is lockable and weather sealed
  • Above grade, NEMA 3R rated, rain tight enclosure
  • LED indicators for instant recognition of 120v and 12v power €œTimer Ready€ standard (for plug in timers, NOT INCLUDED).

User must provide simple timer with outlet available from a Hardware Store.

  • Photocell Ready with quick connector (not on -AT models)
  • Supplied with two 1/2€³ conduit (trade size) holes & one 1-1/2€³ inlet with plugs in bottom panel plus 2 side panel 1/2€³ conduit (trade size) holes with plugs
  • Break away bottom panel swings down for easy access wiring
  • 11 gauge cold rolled steel €˜L€™ brackets for stable mounting
  • Mounting plate and hardware included

Out of stock

Add to Wishlist
Add to Wishlist
SKU: RXT1260MV Categories: , Tag:

Description

FINISH

  • Brushed Stainless Steel

ELECTRICAL

  • Long life, high efficiency 266°F (130°C) class ‘B’ rated transformer core
  • Copper Shielded isolation/insulation; No contact between 120v and 12v windings
  • 1500v Isolation between all windings and ground
  • Grade M19 electric grade steel for superior electrical and magnetic properties
  • Single phase, open core and coil
  • E.L. laminated core has concentric winding and is protected by 180°C thermal switch.
  • Double vacuumed impregnated with black slate flour
  • Filled varnish for superior heat dissipation and noise reduction €“ Class 180°C
  • 120v primary, 12.5v secondary 50/60 Hertz/cycle (standard)
  • 6 foot 18/3 SJT-WA weatherproof grounded power cord (120v)
  • ON/OFF control via rocker switch on 120v side
  • Extra heavy duty (80 amp) terminal lugs
  • Manually resettable circuit breakers on front panel for overload and short circuit protection

WARRANTY

  • Limited lifetime warranty on enclosure
  • 10 year warranty on mechanical & electrical components

Additional information

Manufacturer

Pond Product Type

Lighting

Watts Per Light

Series

Stainless Steel

Light Color

Number of Lights

N/A

Lighting Type
