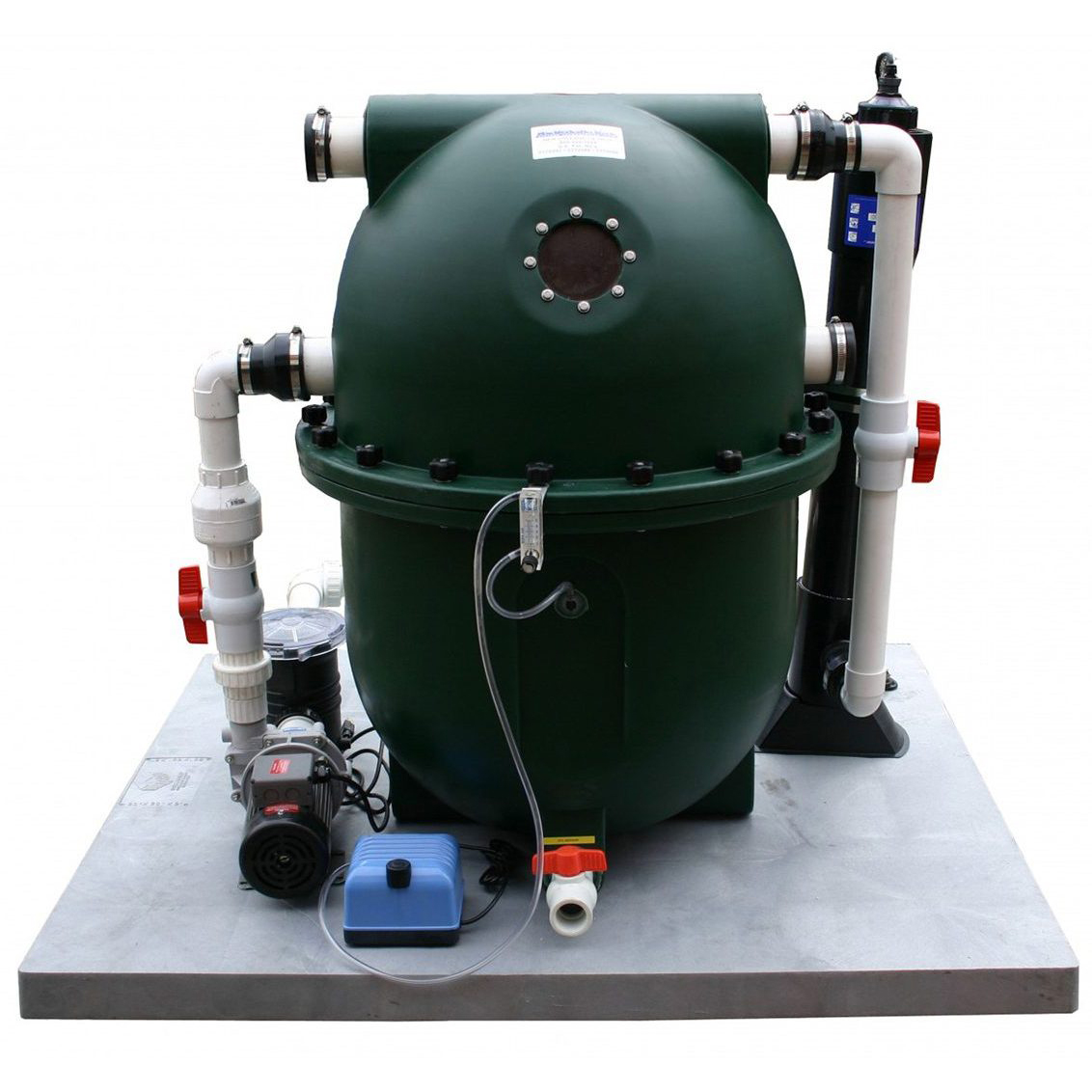

Aquaculture Systems Technology PolyGeyser 12000 Pond Filter Skid 12000 Gallons – PG-12000-S


Filter Specifications
Height – 54″
Diameter – 41″
Shipping Weight – 325 lbs
Bead Media Volume – 6 ft
Max. Flow Rate – 90 gpm
Max. Pressure – 10 PSI
Air Volume for Backwash – 8.2 ft3

Out of stock

Add to Wishlist
Add to Wishlist


Prefabricated for Quick and Easy Installation

Skids includes 1/3 H.P. External water pump and 80 Watt UV and Air Pump

With our PolyGeyser skid systems, you can rest assured that AST’s engineering professionals have done all of the hard work for you. These systems come with all of your filtration basics, plus optional UV sterilization. The filtration system is as automated as they come, employing a pneumatic backwash mechanism designed to save time.

  • Mounted on a skid for indoor or outdoor use
  • Optional UV sterilization available
  • Centrifugal pumps with strainer baskets
  • Pump Assisted Backwash Kits for pressurized discharge of backwash waters
  • Plumbed using Schedule 40 PVC
  • Unions at strategic locations for easy maintenance
  • Simply connect a line leading from your pond or tank to the pump suction, and a line leading from the filter outlet back to the pond or tank!

Click Here for Instruction Manual

Click Here for Air Line Water Trap for PolyGeyser Filters Manual

Click Here for Filter Specifications

Click Here for PolyGeyser Airlift Specifications

Click Here for PolyGeyser Configuration

Click Here for Polygeyser Installation Assembly

Click Here for Polygeyser Operation & Backwash

Additional information

Filter UV Option

With UV

Pond Product Type

Pond Filtration

Filters Max Pond Size Range



Filtration Type

Filter Max Pond Size
