BlueThumb Medium 22in Elite Waterfall Box 22in Weir – PB1083


Item – Medium Elite Waterfall
Spillway – 22″
Dimensions – 31″ x 30.5″ x 23″
Max Flow Rate – 6,000
Filters Up To – 3,500 Gallons

Purchase this product now and earn 1,485 AZPoints!
Add to Wishlist
Add to Wishlist
SKU: PB1083-BT Categories: ,

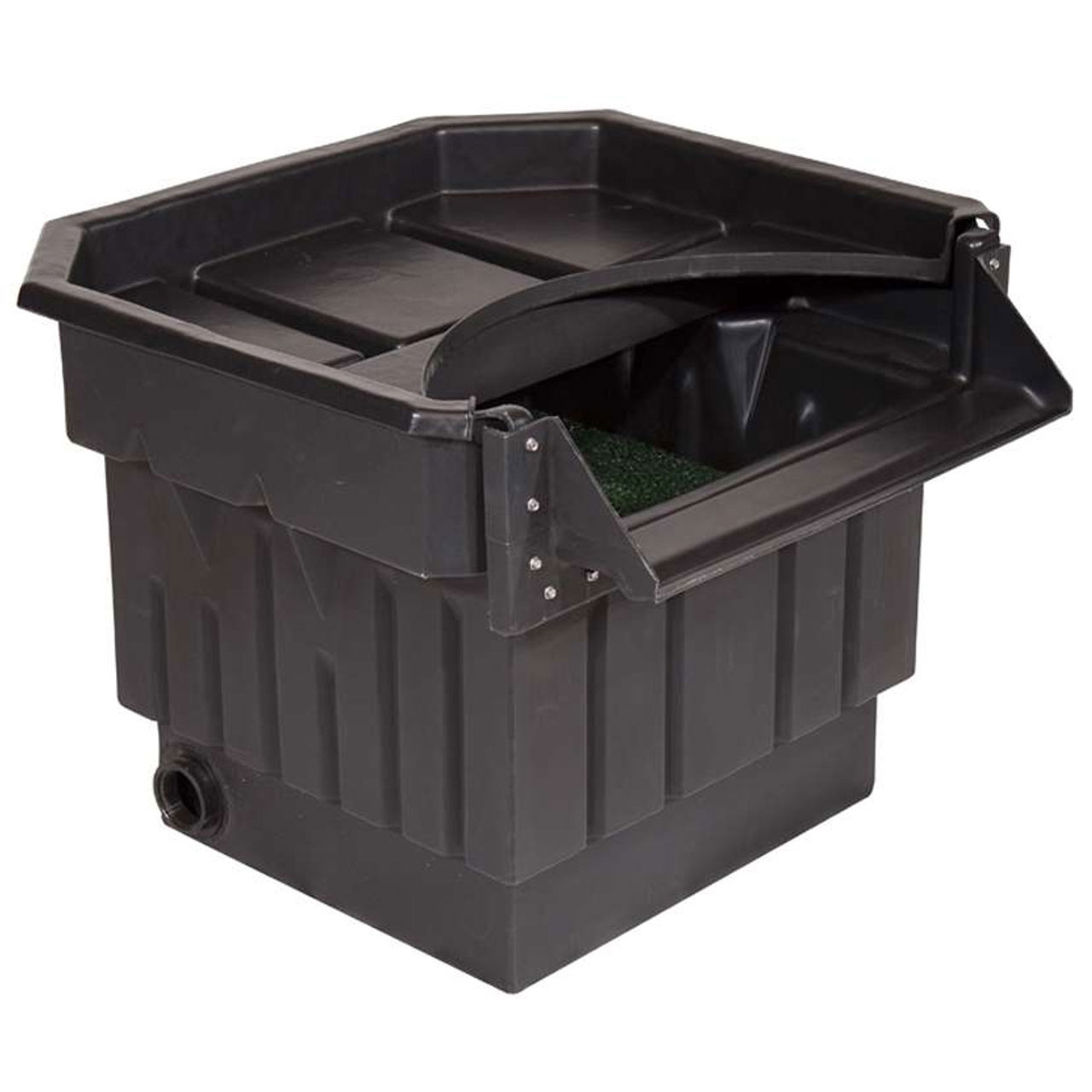

The octagonal design provides maximum strength, and a much easier shape to camouflage than circular or rectangle designs. With 2 bulkhead openings, pipes can be installed from either side. The second opening can be used as a back flush to perform water changes or connect multiple pumps or plumbing lines. The two included Matala mats have two times the biological benefit and will last up to four times longer than traditional mats. These boxes come with self-tapping stainless steel screws for easy installation and corrosion resistance. Lastly, the waterfall snout is reversible. Install in the usual way for basic installation or reverse the snout for a more advanced waterfall appearance.

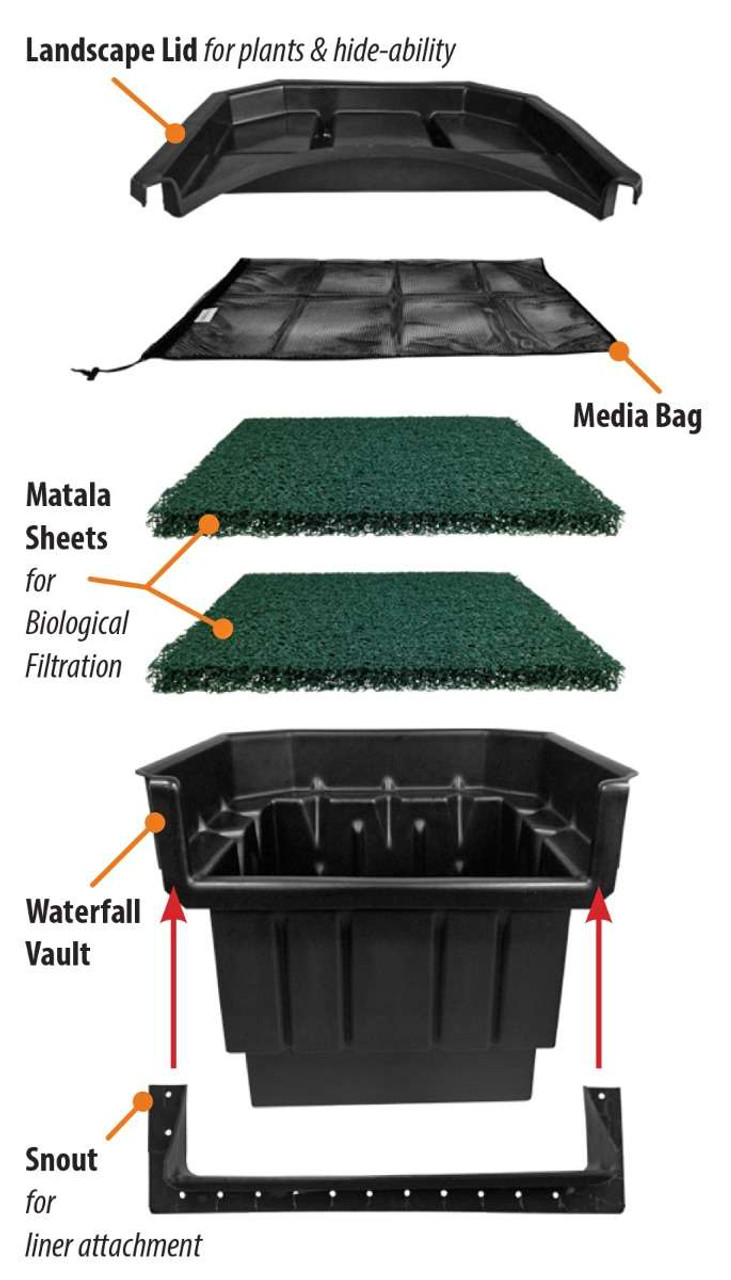

Elite Series Waterfall Filters are absolutely the strongest, most durable waterfalls on the market! A contractor favorite, Elite Series Waterfalls come standard with Matala Biological Filtration Mats and include a Landscape Lid for concealing the unit within the landscape.

  • Waterfall Width: 22" Spillway
  • Dimensions: 31" x 30.5" x 23"
  • Max Rec. Pump Flow: 6000 gph
  • Max Pond Volume: 3500 gal.
  • Inlet Size: Two – 2" Spinwelds
  • Filter/Waterfall Unit
  • Detachable Weir
  • Bio Filter Mat
  • Mesh Media Bag
  • Plumbing Fittings
  • Stainless Screws
  • Screw Caps
  • Liner Clips
  • Silicone
  • Teflon Tape
  • Installation Instructions
  • Made in the USA

Additional information


Pond Product Type

Pond Waterfalls



Waterfall Spillway Range

Waterfall Spillway Size

Waterfall Spillway Type

Waterfall Weir Size
